Aluminum Corrugated roofing sheet roll forming machine

Basic Info

Model No.: Customize

Product Description

Aluminum Corrugated roofing sheet roll forming machine

According to the application of the classification - divided into roof panels, wall panels, floor panels and ceiling panels, etc.. The use of color steel plate at the same time to do the wall decoration board, architectural decoration effect is more novel and unique.

1.This roll forming machine can rollform wall panel. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2.Rollforming process:uncoiler, rollforming, cut to length.

3.Fully Automatic Control System with PLC.

4.Easy operation: Key in the length and quantity on the control panel.

5.One year warranty.

6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.

7.One roll forming machine only can produce one profile.



1.Profiledrawing



2.Technical Parameter

(1) Processing material: aluzinc/galvanized steel/colored steel coil

(2) Material thickness: 0.3-0.8mm

(3) Effective width: 836 mm

(4) Feeding width: 1000mm

(5) Main motor power: 4kw

(6) Pump power: 4kw

(7) Shaft diameter: 75mm

(8) Forming steps: 13steps

(9) Roller material: 45# forged steel, with hard chrome plating

(10) Main frame: 300H steel

(11) Medium plate thickness: 16mm

(12) Machine speed:10-12m/min

(13) Control systerm: PLC computer control with inverter

(14) Power supply: 380V, 3 Phase, 60Hz or according to customer`s request

(15) 0veral sized: 6800mm*1500mm*1500mm

3.Configurations


Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.

4.Some machine pictures


Aluminium Corrugating MachineAluminium Corrugating MachineAluminum Roof Corrugated Roll Forming Machine

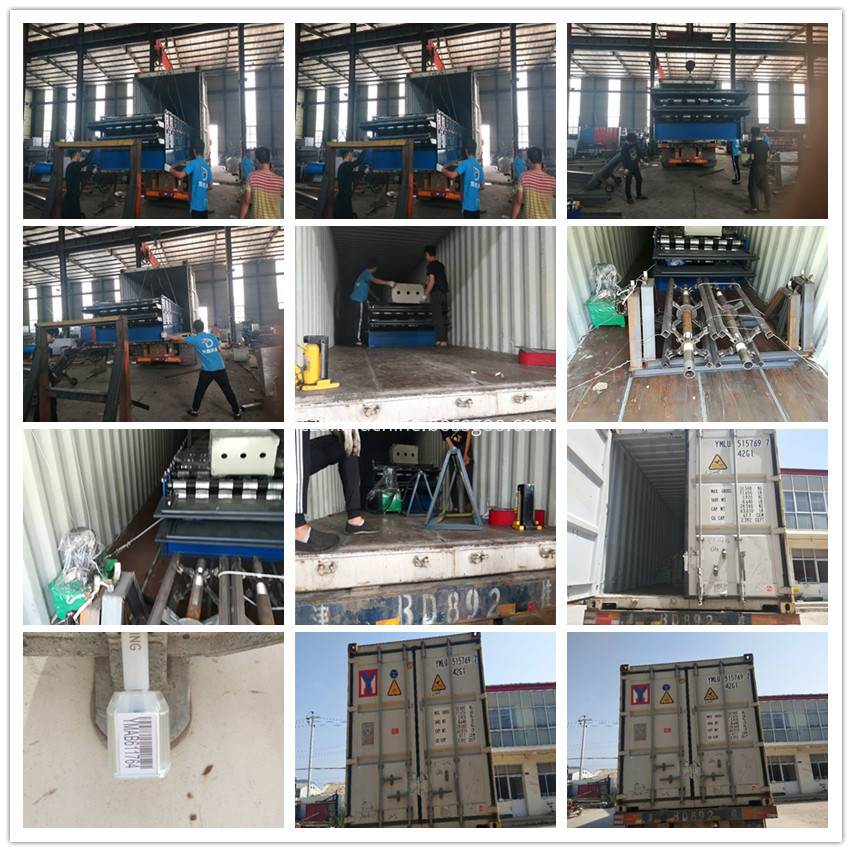

Packing and delivery


1. The main body of rolling machine is covered with anti-rust paint, will be nude loaded;

2. The shafts and rollers of the machine and the electric parts including PLC control system, electric motor will be packed with plastic film, to provide waterproof effect;

3. The whole body is fixed with iron wire inside the container; Other spare parts are all packed in carton box.

4. We accept customer's specified packaging.

packing detail


Roof and wall panel of rollforming machine

profile

Our service


1,immediate respond

All the customers has SUORONG STEEL full attention, we will be 24/7 on line at your services to provide the immediate and professional suggestion. SUORONG STEEL has exported to more than 50 countries in the world, 8 oversea subsidiaries is on the way as well, could provide you the immediate respond services with our sincerity.

2, professional sugession

With decades commitment, more than 90% technician has incepted the mechanical bachlor degree in SUORONG team, and almost 60% has more than 6 years' steel manufacturing and consulting experiences. Could provide you the professional suggestion with our expertise acumen.

3, short delivery period

30 working days after the deposit.

4. wanranty issued

Our machine's warranty period is 12months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period
we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
